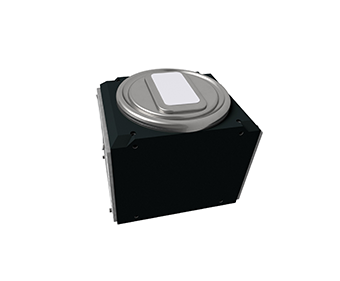

Ash Weight sensor

Key Features

Double sided X-Ray based sensor using a scintillation detector
Noncontact sensor
Connection to sensor using Profibus or Modbus Fieldbus
More accurate online measurements with variable gamma source energy levels

Measuring Method

The Scienta 7213X Online Sensor series is based on the measurement of absorption of Gamma rays in a scintillation detector. The radiation source is soft x-ray transmitter tube, which is powered by an internal power supply generating 5-10 kV. The unit is very compact and has a built-in Profibus Fieldbus connection, which can be changed into a Modbus network by changing the software settings. A USB connection is used to manage the internal linearization and filtering options.

Benefits

To process applications such as paper, board, nonwovens, resin impregnation, laminating, foils etc.

Non-contact measurement
Service free construction
Easy and convenient to install and operate
Full range of scanners available
Easy calibration and setup
More accurate online measurements
Faster on-spec quality and reduced start up waste

Reduction in rejects due to high performing measurements
Minimization of energy consumption by accurate and reliable Ash Weight measurements and controls
Machine speeds can be increased on drying limited paper and board machines

Technical Specifications

Sensor Type	7213X
Method	X-Ray
Construction	Double sided
Range	5 – 150 g/m² (300 g/m²)
Accuracy	0,25g/m ² (2 σ)
Repeatability	0,2 g/m ² (2 σ)
Recommended measurement gap	13 mm
Power Requirement	+24V, 1A
Installation	Scanning /Fixed

Sensor Type	7213X
Measurement Resolution	0,1 g/m²
Interface Options	Profibus DP
	Modbus RTU
	USB
	2x analog
Environmental Conditions	10-60 ℃ 10-95 % RH
Liquid Cooling	Optional
