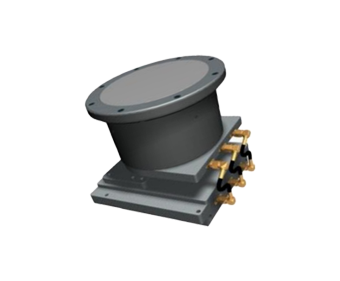

Brightness Sensor

For pulp and paper applications

Key Features

Wide, dynamic measuring range with fast update rate
Single sided, reflective measurement
Brightness according to TAPPI T452
Real-time window into the stock preparation process

Measuring Method

The Scienta LED based sensor model 7280 measures Pulp and Paper sheet Brightness in BU units online using a multidirectional receiver setup enabling a fiber orientation independent measuring of the scattered light modelled after the TAPPI T452 standard. The LED light source has an extremely long life and thus makes the sensor practically maintenance free. The measurement update frequency is 5 Hz making it well suited for a single point installation.

Benefits

To process applications such as pulp sheet drying.

Dust trap protected lenses for carefree operation
Ultra wide measuring range
Service free construction with large measuring distance (200 mm) to the sheet
Easy and convenient to install and operate
Full range of scanners available

Easy calibration and setup
Reduction in rejects due to high performing, faster measurements – online verification and quality limits
New optimizing tool for pulp drying lines
Faster on-spec quality and reduced start up waste

Technical Specifications

Sensor Type	7280
Construction	Single sided
Measuring Distance	200 mm
Geometry	0/45 ⁰
Measuring Frequency	5 Hz
Light Source	LED R457 spectrum
Measuring Spot Size	35 mm diam.
Installation	Fixed

Sensor Type	7280
Power Consumption	24 VDC, 0,5 A
Interface Options	Profibus
	Modbus
	Ethernet
	RS-232
	Analog
Environmental Conditions	10-60 ℃ 10-95 % RH
