Dilution Profiler
Consistent basis weight profiling for all dilution headboxes

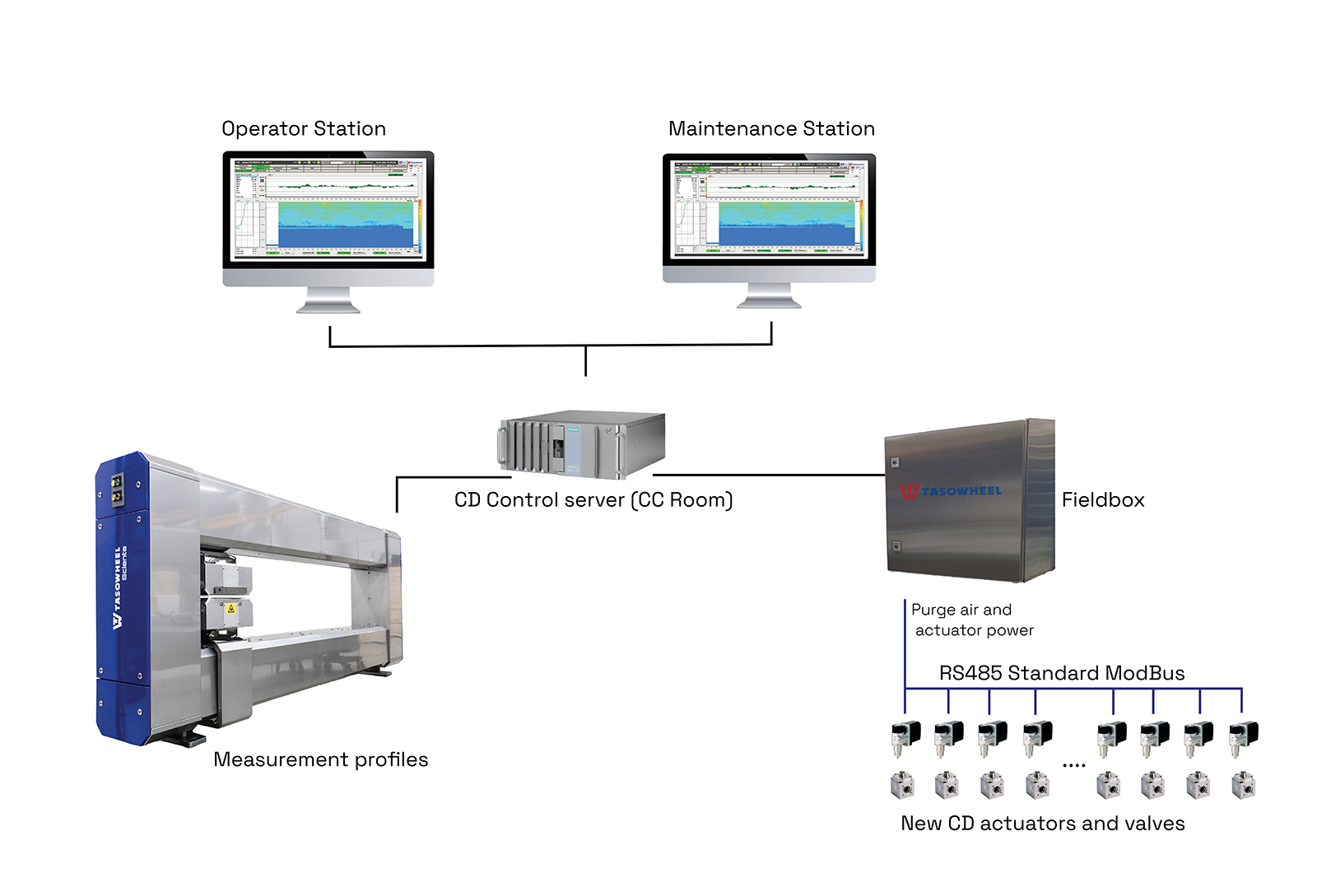

The Tasowheel dilution profiler is a tailored combination of precise actuators and dilution valves with linear flow curves. It provides excellent high-precision control and weight profiling thanks to narrow control zones and absolute actuator positioning.
Our profilers feature high-resolution electromechanical actuators with rotating (RDA) and linear (LDA) movement. The actuators contain Tasowheel electronics (I/O or modcom). The minimum spacing for our actuators is 60 mm in a single row.
Key features
- Small, powerful and precise actuators provide consistent quality and improved performance
- Fast and accurate positioning enables more efficient production
- Better runnability and printing properties thanks to excellent CD basis weight profiles
- Actuators are compatible with maintenance-free stainless steel Tasowheel dilution valves without adapters
Dilution actuators

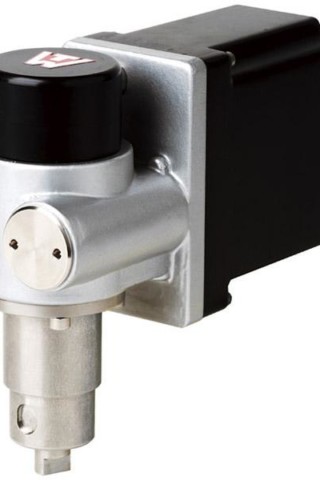

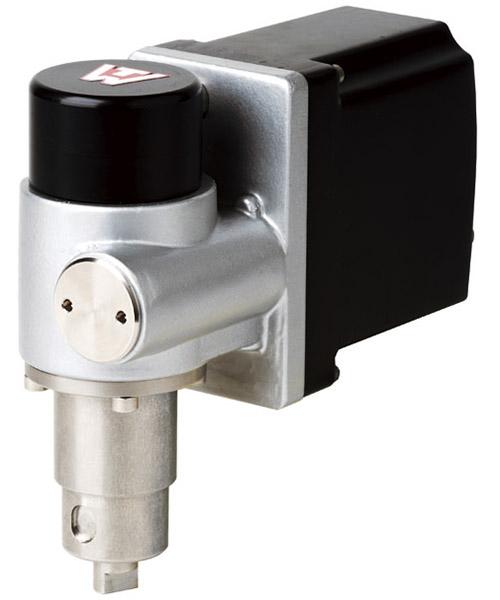

RDA
Rotary dilution actuator
- Operating torque > 20 Nm
- Output: 90°
- Spacing in one row: Min 60 mm
- Resolution < 0,05°

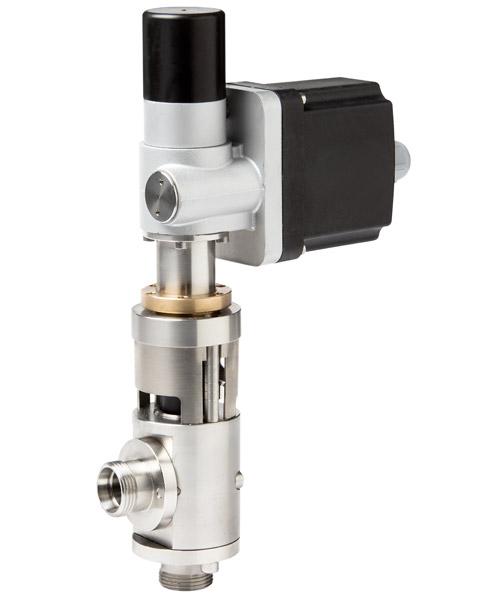

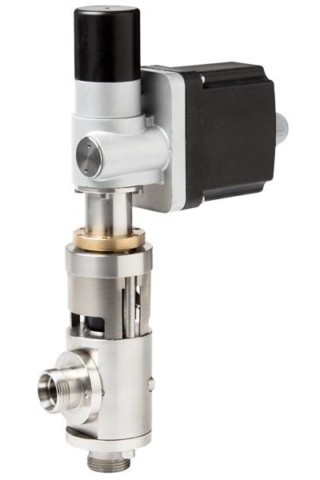

LDA
Linear dilution actuator
- Operating force: up to 3500 N
- Output: up to 50 mm
- Spacing in one row: Min 60 mm
- Resolution < 10 μm
Dilution valves

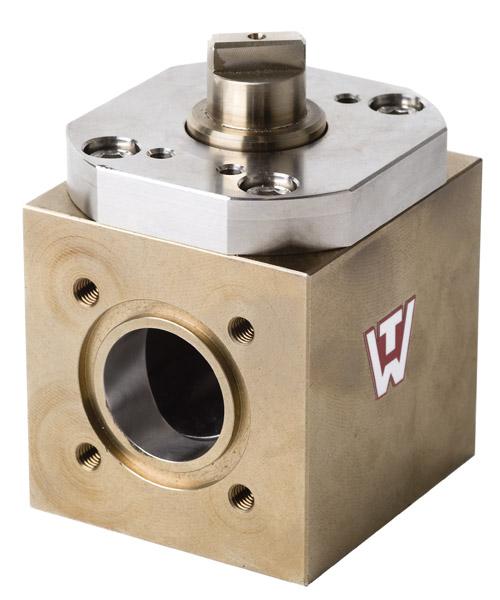

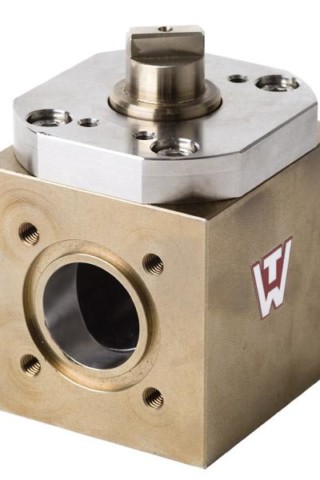

RDV
Rotary dilution valve
- AISI 316, no plastic parts
- Hard coated flow surfaces
- Spacing in one row: Min 60 mm
- Straight through flow

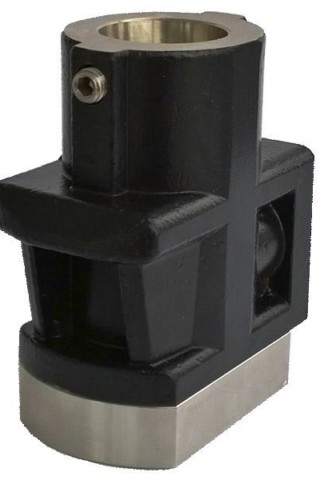

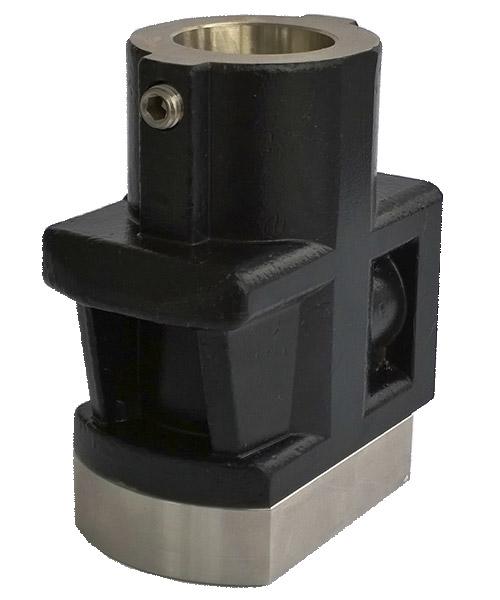

RDV – 90 degree
Rotary dilution valve
- AISI 316, no plastic parts
- Hard coated flow surfaces
- Spacing in one row: Min 60 mm
- 90 degree through flow

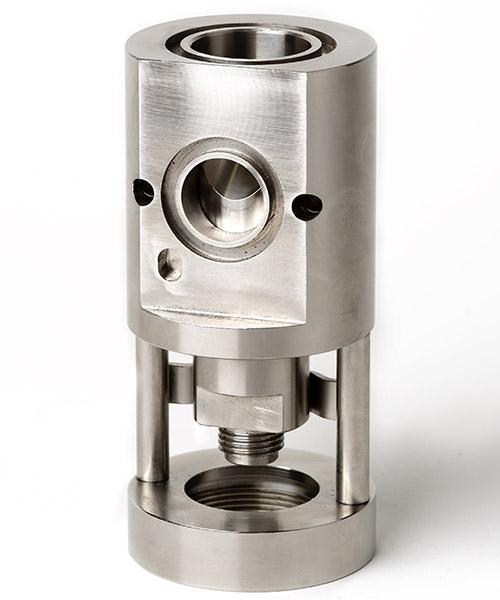

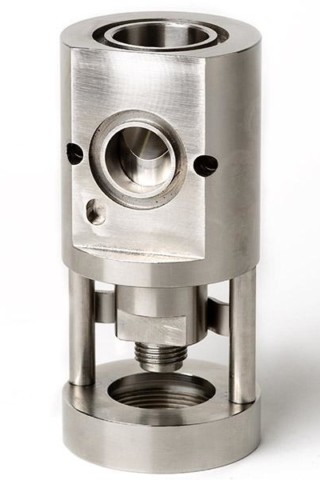

LDV
Linear dilution valve
- AISI 316, no plastic parts
- Hard coated flow surfaces
- Spacing in one row: Min 60 mm
- 90 degree through flow

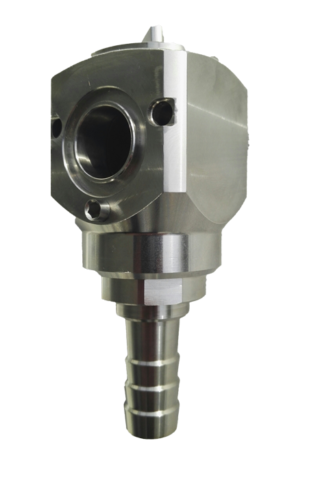

RDV- CV
Rotary dilution valve
- AISI 316, no plastic parts or AISI316 and plastic
- Valve sizes 15,20, 25 mm
- Spacing in one row: Min 53 mm
- 45 degree through flow

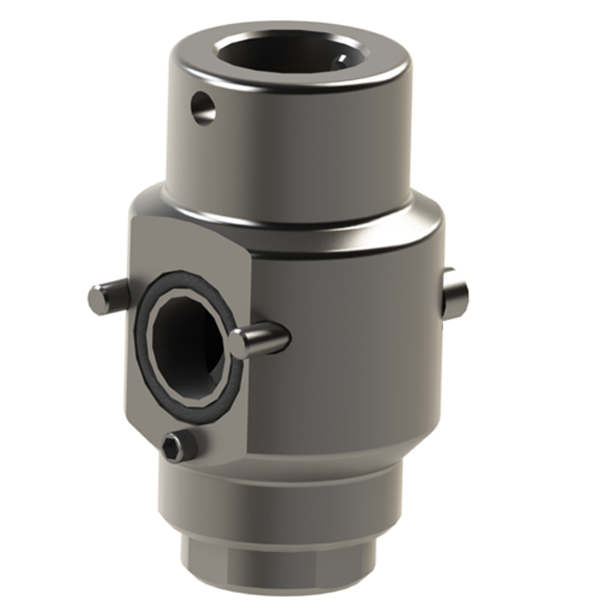

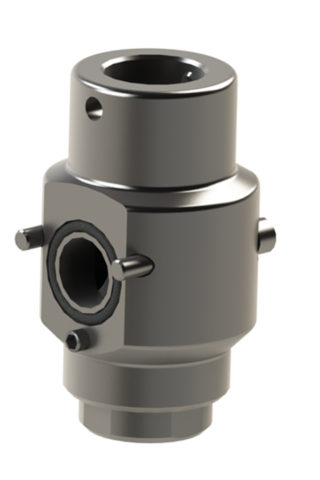

RDV-TCV
Rotary dilution valve
- AISI 316, no plastic parts or AISI316 with plastic interior parts
- Valve sizes 15,20, 25 mm
- Spacing in one row: Min 53 mm
- 45 degree through flow

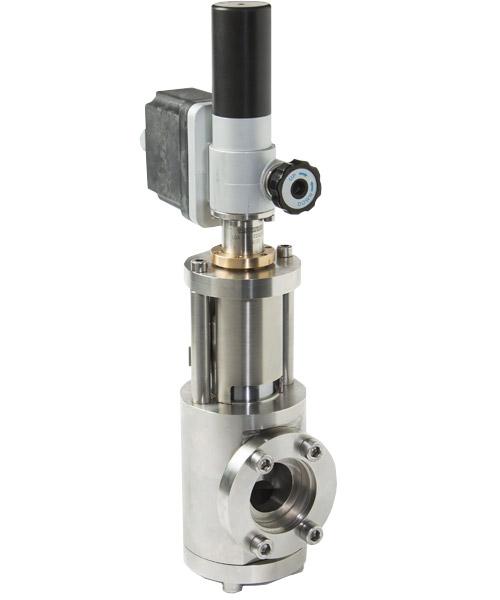

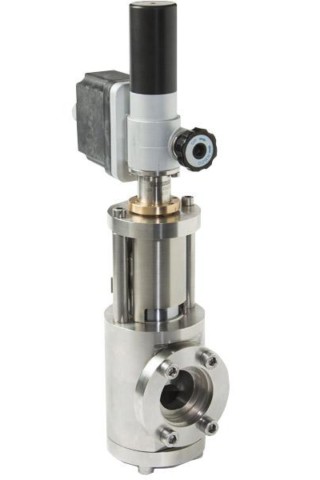

Edgeflow
TASOEDGE
Linear edgeflow actuator with a valve
- Axial force up to 2000 N
- Operating range 40 mm
- Resolution < 10 μm
